HD Mobile DVR Camera System

Mobile-DVRCam00-Monitor-MobileDVR-Cams

Click an image below for a detailed view.

Product Description

ITEM# HD-MOBILE-DVR-CAMERA-SYSTEM

Interested in Wholesale quantities? Please CONTACT us.

#1 Product Leader!
Save time and money proving fault!
Reduce insurance rates for safe driving!*

Monday-Friday USA Tech Support

Call our expert tech support Monday through Friday, 8AM - 5PM (CST)

1-YEAR USA Warranty Support

Camera, cords and components
covered for One (1) Year

4-CHANNEL FULL HD 1080P DVR CAMERA SYSTEM

Developed with professional truckers for the highest quality DVR system!

  • Record modes: Real-time, Motion Detection
  • 128GB SD card; supports up to 2x 128 SD card (total record 256GB)*
  • G-Sensor
  • Delay-off function (5 sec-2 hrs)
  • 4-Channel input/playback
  • System User Interface with Admin mode/user lockout
  • Ability to review files remotely (requires 4G data or Wi-Fi Add-ons)
  • Search mode: review videos by time/date
  • Power Range: DC 10-36V

*Other add-on options available (additional costs may apply):

  • SD Cards
  • GPS
  • 4G (Data) Module
  • Wi-Fi Module

2x Side Camera and 2x Rear Camera option also available.

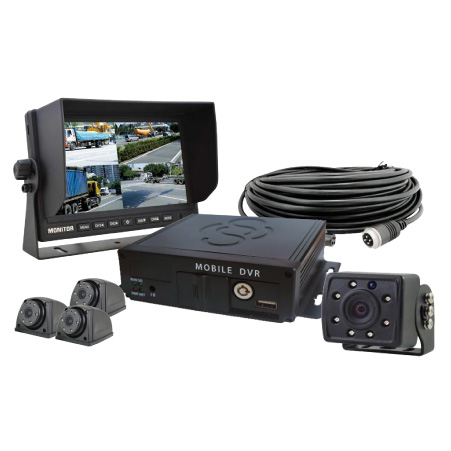

  • 7” Monitor
  • Mobile DVR
  • Cable Kit
  • 3x IR Full HD Side Cameras
  • 1x IR Full HD Rear Camera

Extend your vision beyond the vehicle.  Clearly view and record everything around the vehicle, whether driving or backing up.  Our system records in crisp 1080P clarity, with no latency, to review all vehicles behind and approaching, as well as approach to docking bays, stationary objects or trailers.

  • 7 inch Super Slim Monitor with Detachable Sun Shade
  • Format: PAL/NTSC
  • Power Supply: DC 9V~32V
  • Resolution: 800Wx480H RGB
  • Display Format: 16:9
  • Display Brightness: 300cd/m²
  • Video Inputs: 4 Video-In
  • Touch Keys
  • Weight: 1.54lbs
  • 4-Channel 720P
  • 1920*1080/CH for recording & Playback
  • Full real-time 4CH 1080P recording
  • Image Format: 4 x 1080P / 4 x 960P / 4 x 720P
  • 4CH Video and 4CH Audio while recording
  • 1CH Output Audio
  • Video Standard: NTSC 30fps / PAL 25fps
  • System User Interface with Admin mode/user
    lockout
  • Storage: Class 10, Max 256 GB SD (as two (2) 128GB SD Cards - See SD Card Info below this section)
  • Power Input: 10V-36V
  • Power Output: 12V 2A
  • Size: 5.8" W x 4.9" D x 1.6" H

**SD Cards available for additional cost

  • Resolution: 720P
  • Effective Pixels: 1280x720
  • Viewing Angle: 120° (D)
  • IR LED: 6 LEDs
  • Power Voltage: DC12V
  • Waterproof Rating: IP 68
  • Resolution: 976x539
  • TV Lines: 700 TV Lines
  • Viewing Angle: 155° (D)
  • IR LED: 7 LEDs
  • Power Voltage: DC 12V-32V
  • Waterproof Rating: IP 68

30FT AND 60FT EXTENSION CABLES

  • Female head locking plug
  • Mail tail locking plug: 4-Pin coaxial cable
  • Rubber wrap to protect connectors
  • Additional Add-On Sizes available***: 15FT, 30FT, 45FT

*** Available for additional cost

SD CARD INFO

  • Requires 2 SD cards (not microSD) to record, up to 128GB each (total record 256GB).
  • We recommend cards that write 95mb/s or faster.
  • Recommended: do not purchase microSD cards with SD adapters as these tend to be less stable and DVR may not record correctly.

PLEASE ALLOW UP TO 4-8 WEEKS TO RECEIVE THIS UNIT.
